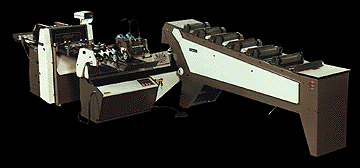

203C Stitcher Specifications:
Maximum book size: 12-1/2" x 15" (318 x
381mm)
Minimum book size: 3" x 5" (76 x 127mm)
Maximum stitch space (center to center): 9-3/4" (247mm)
Minimum stitch space (center to center): 2-1/8" (54mm)
Maximum Book Thickness: 3/8" (9.5mm)
Cycling speed: 1800 to 5000 B.P.H. - up to 4300 booklets/hr*
Height: 49" (1.2m)
Length: 84" (2.1m)
Width: 55" (1.4m)
Shipping weight: 1,060 lbs. (481kg)
Export Shipping weight: 1,235 lbs. (560kg)
Standard electrics: 230V/60/3
CHANGEABLE SPACE-SAVING LAYOUTS
Length ("Z" configuration): 19' 3-1/2" (5.9m)
Width ("Z" configuration): 6' 11" (2.1m)
Length ("U" configuration): 12' 8-1/2" (3.8m)
Width ("U" configuration): 6' 11" (2.1m)
Height: 49" (1.2m)
Shipping weight: 4,260 lbs. (1932kg)
Export Shipping weight: 4,610 lbs. (2,091kg)
Standard electrics: 230V/380/440/50HZ/3PH (**)(***)
*Based on optimal operating conditions and will vary
depending on stock, operator, and environmental conditions.
**Contact ROSBACK for optional
electrics availability.
***If voltage is lower than 230 volts, customer should provide a minimum of .750 KVA Buck
& Boost transformers.
203C Stitcher Options
251 Stack Feeder
Total & batch counter
958 Auto Punch
Extra set of trimmer knives
Flat stitch table
Third, fourth and spare stitching heads
Hohner stitching heads
213 Saddle Extension
"CE" style guarding
