The new 248 Cross Perforator/Scorer/Slitter reduces the time and extra
handling in jobs previously requiring costly re-feeding (double pass).
The 30-inch Model 248 Cross Perforator rolls up to other equipment (in
line or right angle) and accepts work from folders, collators, numbering machines, and
other perforators. With this versatile unit, virtually unlimited single pass,
straight-in, or 90º configurations can be achieved with the Model 248 Cross Perforator.

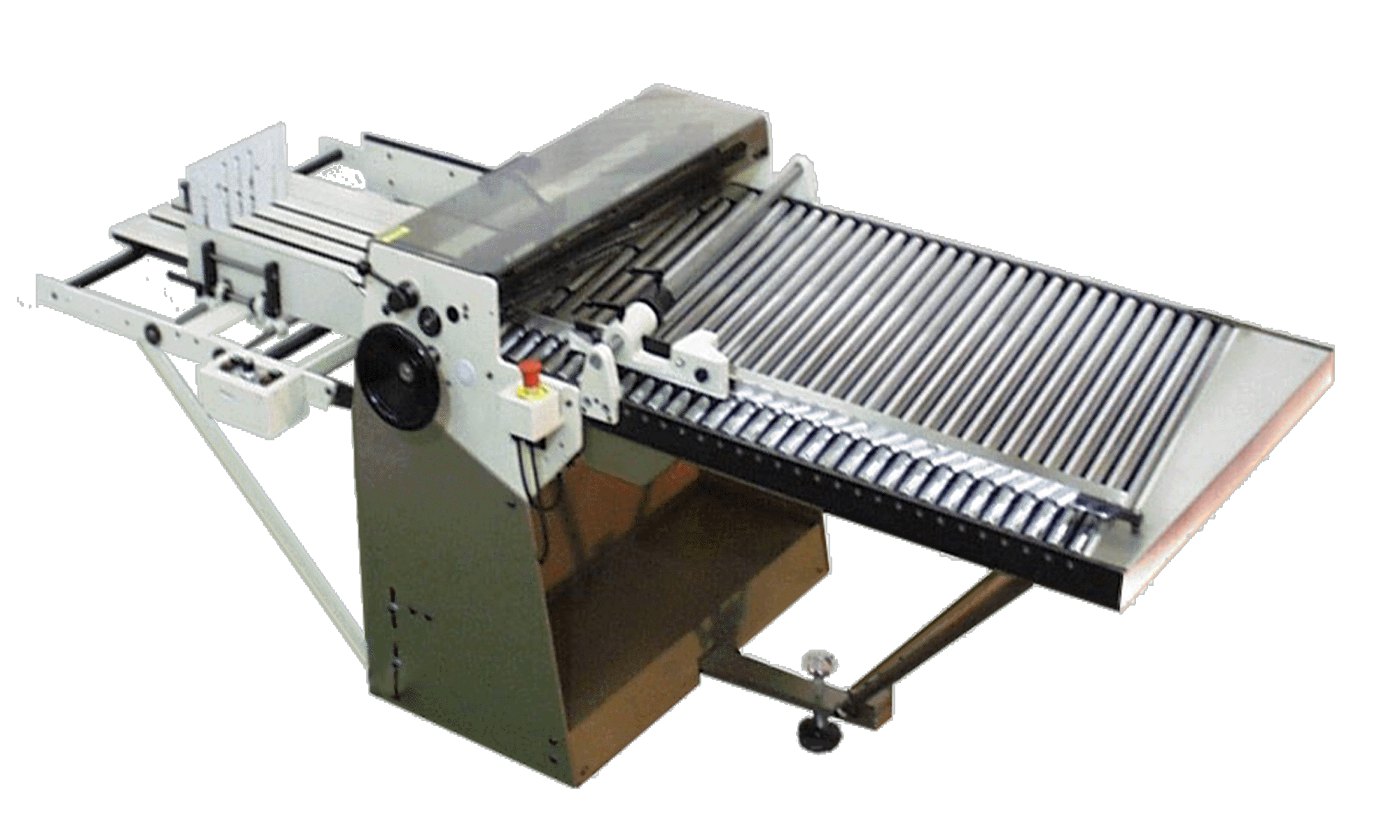

248 Cross Perforator shown with 240 jogger delivery table
248 Cross Perforator Specifications
Maximum sheet size: 30" x 30" (76.2cm x 76.2cm)
Minimum sheet size: 7-1/2" x 7-1/2" (19.1cm x 19.1cm)
Min. space between standard lines of perf: 3/4" (1.9cm) (1/2"
spacing available)
Adjustable Height: 30-3/8" - 33-3/8" (77cm - 85cm)
Standard edge margin: 3/4" (1.9cm) (3/8" narrow margin
available)
Machine Dimensions: 89" L, 42" W, 38" H (226cm L, 107cm W,
97cm H)
Net weight: 760 lbs. (345 kg)
Shipping weight: 801 lbs. (363 kg)
State-of-the-art Features
Heavy-duty 30" perf section
100% accurate side-bar registration system
Convenient operator control system
Production speeds from 1000 to 24,000 feet per hour
Adjustable height in-feed
Jogger Delivery from 240 Series will fit 248, OR you can add 930 conveyor delivery
Caster mounted
Up to 10 heads can be used
Handles material weights from 9# onionskin to 1/16" thick card stock
Heavy-duty 3/4 HP motor
Feed into the new ROSBACK 248 Cross Perforator from any ROSBACK 240 Series Perforators or any ROSBACK
TrueLine Series Perforators (20" or 26") to complete right angle jobs perfectly
and profitably!
Standard Equipment
2 sets of perforating heads with burr rollers
1 set of scoring/creasing heads
1 full-circle shaft supports
2 sets of drive rollers
8 perforator blades
Accessories and Optional Features
Perforating heads with burr rollers
Narrow margin 3/8" perforating heads
Special 1/2" slot perforating heads (between lines of perf)
Knife-cut snapout cutters
Pressure-sensitive slitting attachment
Slitting heads
Micro-perf heads
Gutter-cut heads
"CD" heads
Jogger delivery
Conveyor delivery
Special engineered heads (Contact ROSBACK with specs)
"CE" style guarding
