The 380 Sterling 3-Spindle Drill offers the best of both worlds; increased
production at an attractive price.

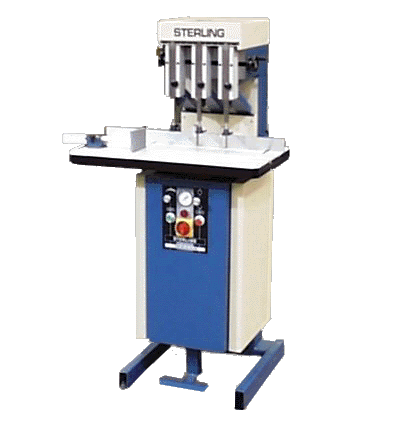

380 Sterling 3-Spindle Paper Drill
Expertly engineered, the 380 Sterling 3-Spindle Drill is fully
hydraulic and offers maximum production with minimum maintenance. It's heavy-duty
construction and ease of setup makes it an operator's delight.
380 Sterling 3-Spindle Drill Features
BIG 3" (7.6 cm) drilling capacity
Fully adjustable from 2" to 3" (5.1 cm x 7.6 cm) capacity
Variable stroke speed
Uses standard shank drill bits -- 1/8" to 9/16" (0.32 cm x 1.4 cm)
Micrometer head adjustment
Stepped side gauge
380 Sterling 3-Spindle Drill Specifications
Table size: 30" x 17-1/2" (76.2 cm x 44.5 cm)
Maximum center to center distance: 10-1/2" (26.7 cm)
Minimum center to center distance: 2-3/8" (6.03 cm)
Throat depth: 5-3/4" (14.6 cm)
Electrics: 220V, 3 PH, 10 Amp
Horse power: 3 HP
Height: 58" (147 cm)
Depth: 24" (61 cm)
Width: 30" (76.2 cm)
Weight: 400 lbs. (182 kg)
*Small drill diameters have less capacity
