Do you have a special need for your perforating applications? Contact us for a quote. We've done a wide
variety of special perforating heads. The following are some examples of our
standard perforating heads and special perforating applications.

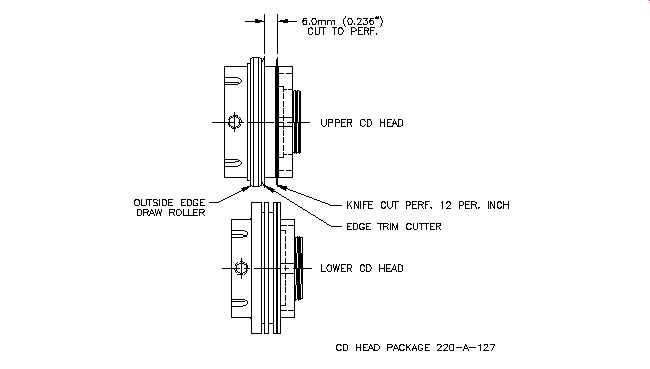

This is an image of our standard "CD" Head and is provided
within a package. The part number is 220-A-127 and is used on all Rosback
perforators.

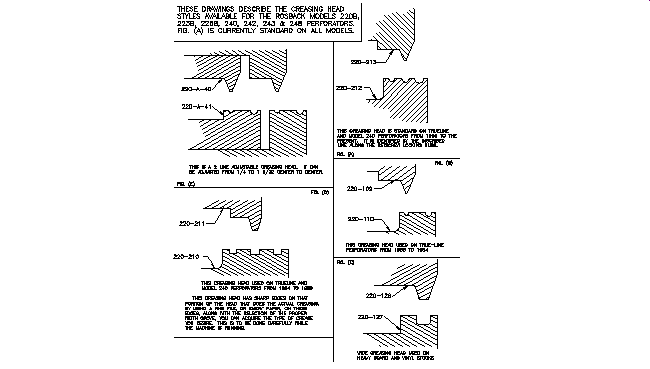

These are images of our creasing heads and are provided within a package. Currently
the top two are standard and the part numbers are 220-A-113 & 220-A-114 two-line
adjustable and these are used on all Rosback perforators. The bottom three are also
available similar to the standard yet have sharper creasing edges.
This is an image of our standard perforating head and is provided within a package.
The part number is 220-A-108 and is used on all Rosback perforators.

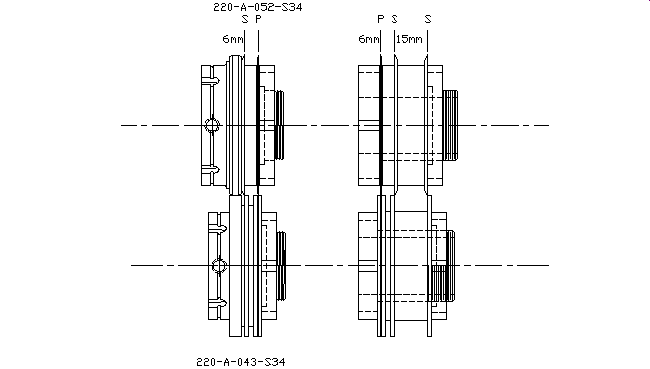

This is an image of special slit/perf heads. For this application a customer
required two different heads. One head to slit and perf along the outer edges by 6mm
while the center head perforates and slits by 6mm and a 15mm gutter cut to separated the
finished stock.

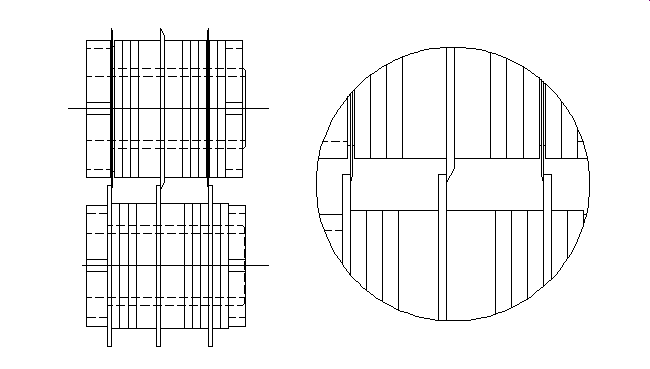

This is an image of special slit/perf head as well. For this application a customer
required two perforations with a center slit to divide the sheets.
