As the world's leading manufacturer of bindery equipment for over
100 years, ROSBACK continues to set the standards by
which quality bindery equipment is measured. That high quality is the advantage you get
when you choose ROSBACK equipment. Now the ROSBACK advantage is yours in the 3-Spindle drill at a price you'd
expect to pay for a single spindle tabletop model. Versatile, dependable ROSBACK 3-Spindle drills put increased drilling capacity and
flexibility within reach for a variety of users, including commercial, in-plant and quick
printers, offices, churches, schools, government facilities, and mailrooms.

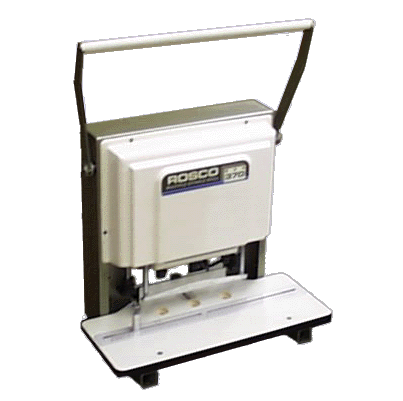

370 3-Spindle Paper Drill
ROSBACK 3-Spindle drills can drill a full two inches of stock
in a single stroke with extreme speed and accuracy. A complete range of drill sizes
from 1/8" to 1/2" provides fast setup and change-over. Locking backgage
makes margin adjustment quick and easy. Metal floor stand and table extensions are
available as optional equipment.
A heavy-duty 3/4 HP motor powers the spindles with a poly-v belt drive.
Durable-sealed thrust and ball bearings for dependable operation.
Vertical head adjustment is accomplished simply. A single adjustment of the outside
drills makes it possible to use drill of different lengths. High compression
"hold-down" and stripper bar and fixed 4-1/4" drill spacing provide perfect
accuracy and eliminate spacing errors.
370 3-Spindle Paper Drill Specifications
Drill capacity maximum*: 2" (51mm)
Back margin maximum: 2-1/2" (63mm)
Side margin maximum: 12" (30cm)
Fixed distance between holes: 4-1/4" (108mm)
Drill bit diameters: 1/8" to 1/2" (3.2 to 12.7mm)
Drill head operation: hand lever
Height: 38" (97cm)
Depth: 21" (53cm)
Width: 28" (71cm)
Weight: 140 lbs. (64kg)
Shipping weight: 219 lbs. (99kg)
*Small drill diameters have less capacity
371 3-Spindle Paper Drill Specifications
Drill capacity maximum*: 2" (51mm)
Back margin maximum: 1-1/4" (32mm)
Side margin maximum: 18-1/4" (46cm)
Fixed distance between holes: 4-1/4" (108mm)
Drill bit diameters: 1/8" to 1/2" (3.2 to 12.7mm)
Drill head operation: hand lever
Height: 38" (97cm)
Depth: 21" (53cm)
Width: 39-3/4" (101cm)
Weight: 150 lbs. (68kg)
Shipping weight: 169 lbs. (77kg)
*Small drill diameters have less capacity
370 & 371 3-Spindle Paper Drill Electrical Specifications
Standard: 115V-50/60HZ/1-PH
Optional: 230V-50/60HZ/1-PH
Motor: 3/4 H.P.
Service size: 15 AMPS
370 & 371 3-Spindle Paper Drill Optional Equipment
1/8" - 3/8" - Drills
350-A-014 Drill stand
350-A-015 Table extensions (370 only)
S-1295 Drill sharpener
