The ROSBACK 203 Bindery System and RELIANT
318 SaddleBinder are fully automatic, medium to high-speed, heavy-duty saddle binders that
collate, stitch, 3-knife trim and deliver professionally finished booklets. Both systems
are the ideal choice for commercial printers, trade binderies, and in-plants who want to
cut their costs and increase their productivity.
These ROSBACK systems were designed for operator ease of
make-ready, operation, and change-over. No other saddle binding systems in their class
have such quick change-over...30 minutes or less for the experienced operator depending on
the job...and that means more profits!

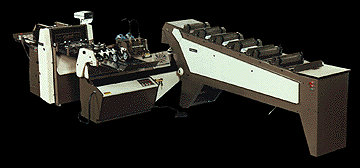

Rosback 203 Bindery System and RELIANT 318 Saddle Binder
This time-tested design is backed by over a century of ROSBACK'S unmatched reputation for superior quality and guarantees
complete customer satisfaction.
The 203 and 318 do it all in-line; insert, saddle-stitch, and three-side trim multiple
signature saddle-stitched books and booklets from 8 pages (2 sheets) up to 3/8"
(approx. 120 pages). Variable speed ranges from 1800 to 5000 cycles per hour with average
production being up to 32,000 in an 8 hour day.
If you are a printer that prints multiple-signature impositions, folds sheets into
signatures (4, 8, 12, 16, or 32 pages), and collates, saddle-stitches, and 3-knife trims
them, and your runs range from 500 to 32,000 books per day - you can substantially build
your profits with either the ROSBACK 203 Bindery System or the
ROSBACK RELIANT 318 SaddleBinder.
203C Stitcher Specifications
Maximum book size: 12-1/2" x 15" (318 x 381mm)
Minimum book size: 3" x 5" (76 x 127mm)
Maximum stitch space (center to center): 9-3/4" (247mm)
Minimum stitch space (center to center): 2-1/8" (54mm)
Maximum Book Thickness: 3/8" (9.5mm)
Cycling speed: 1800 to 5000 B.P.H. - up to 4300 booklets/hr*
Height: 49" (1.2m)
Length: 84" (2.1m)
Width: 55" (1.4m)
Shipping weight: 1,060 lbs. (481kg)
Export Shipping weight: 1,235 lbs. (560kg)
Standard electrics: 230V/60/3
203 Bindery System
Maximum book size: 11-1/2" x 15" (292 x 381mm)
Minimum book size: 4" x 7" (102 x 178mm)
Maximum stitch space (center to center): 9-3/4" (247mm)
Minimum stitch space (center to center): 2-1/8" (54mm)
Minimum overlap (feeder): 1/4" (6.35mm)
Maximum trim thickness (finished booklet): 3/8" (9.5mm)
Cycling speed (production speed): 1800 to 5000 B.P.H. - up to 4300
booklets/hr*
CHANGEABLE SPACE-SAVING LAYOUTS
Length ("Z" configuration): 19' 3-1/2" (5.9m)
Width ("Z" configuration): 6' 11" (2.1m)
Length ("U" configuration): 12' 8-1/2" (3.8m)
Width ("U" configuration): 6' 11" (2.1m)
Height: 49" (1.2m)
Shipping weight: 4,260 lbs. (1932kg)
Export Shipping weight: 4,610 lbs. (2,091kg)
Standard electrics: 230V/380/440/50HZ/3PH (**)(***)
RELIANT 318 SaddleBinder
Maximum book size: 11-3/4" x 14" (298 x 356mm)
Minimum book size: 3-1/8" x 5-13/16" (80 x 148mm)
Maximum stitch space (center to center): 9-3/4" (247mm)
Minimum stitch space (center to center): 2-1/8" (54mm)
Minimum overlap (feeder): 1/4" (6.35mm)
Maximum trim thickness (finished booklet): 3/8" (9.5mm)
Cycling speed (production speed): 1800 to 5000 B.P.H. - up to 4300
booklets/hr*
CHANGEABLE SPACE-SAVING LAYOUTS
Length ("Z" configuration): 19' 3-1/2" (5.9m)
Width ("Z" configuration): 6' 11" (2.1m)
Length ("U" configuration): 12' 8-1/2" (3.8m)
Width ("U" configuration): 6' 11" (2.1m)
Height: 49" (1.2m)
Shipping weight: 4,260 lbs. (1932kg)
Export shipping weight: 4,610 lbs. (2,091kg)
Standard electrics: 230V/380/440/50HZ/60/3PH (**)(***)
*Based on optimal operating conditions and will vary depending on stock,
operator, and environmental conditions.
**Contact ROSBACK for optional
electrics availability.
***If voltage is lower than 230 volts, customer should provide a minimum of .750 KVA Buck
& Boost transformers.
203C Stitcher Options
251 Stack Feeder
Total & batch counter
958 Auto Punch
Extra set of trimmer knives
Flat stitch table
Third, fourth and spare stitching heads
Hohner stitching heads
213 Saddle Extension
"CE" style guarding
For more information send correspondence to:
Rosback Company
c/o Ron Bowman
rosbacksales@qtm.net
PO Box 899, Benton Harbor, Michigan 49023
Voice-616.983.2582, Fax-616.983.2516
