Streamline efficiency with professional results with a ROSBACK 880 PerfectBinder and 885 Vacuum Cover Feeder.
The heavy-duty 880 single-clamp Perfect Binder introduced in 1978, has been recognized
worldwide as an industry leader for producing consistent, square-spined, durable, high
quality perfect bound books...profitably. The Model 880 Perfect Binder, is designed for
small to medium length production runs and quick change-overs.

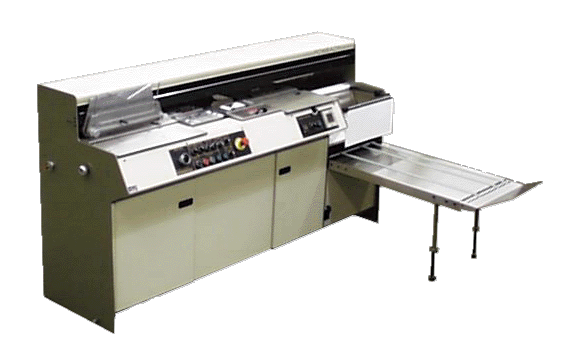

880 PerfectBinder
Fully operator oriented, the 880 combines dependability and flexibility.
Consistent top-quality professional results can be achieved easily with minimum
training.
Now, printers and bookbinders can have everything they seek in a perfect binding
operation:
-- Excellent productivity --
-- High quality square spine book binding --
-- Quick change-over --
-- Controlled labor costs --
NEW! INNOVATIVE FEATURES
Vertical Stacking Delivery
Delivering PerfectBinded books in a vertical position.
Heat Control Timer
-- 24 hour 7 day programmable timer eliminates time wasted waiting for gluepot to
reach temperature
-- Easy to read display shows time and output state
-- 10 year battery backup for memory protection
-- Override switch on panel front disables timing function when desired
Temperature Controller
-- PID (proportional/integral/derivative) process control with auto-tuning and
pulsed output for precise temperature control
-- Dual display shows set-point and glue temperature
-- Automatic lockout of glue rollers during heating
-- Set-point temperature is selected by the operator
880 PerfectBinder Specifications
Minimum Book Thickness: 1/8" (3mm)
Maximum Book Thickness: 2" (50mm)
Minimum Spine Length: 4" (101mm)
Maximum Spine Length (see special below): 15-1/2" (393mm)
Minimum Page Width: 2-1/2" (63mm)
Maximum Page Width: 12" (304mm)
Maximum Spine Milling Depth: 5/32" (4mm)
Cycle speed: 600 cycles/hour
Height: 43-1/2" (1,11m)
Width: 84" (2,13m)
Length (with conveyor delivery attached): 69" (1,75m)
Net Weight: 850 lbs. (386kg)
Shipping Weight: 1315 lbs. (596kg)
Export shipping weight: 1530 lbs. (694kg)
Milling head motor: 3 HP
Standard electrics: 230**V/60Hz/3 phase, 30AMP service recommended
*Contact ROSBACK
for alternate electrical requirements.
**If voltage is lower than 230 volts, customer should provide a minimum .750VA 'BUCK AND
BOOST' transformers
880 PerfectBinder Options
Drop Tray Delivery
Vertical Stack Delivery
Vacuum Cover Feeder Model 885
Padding Attachment
Retro-fit chain guard attachment
Glue, Box (48lb.), R-611
Padding Glue Box (48lb.), R-911
Special Extended 880 PerfectBinders
available
17" (432mm) Maximum Spine Length
19-1/2" (495mm) Maximum Spine Length

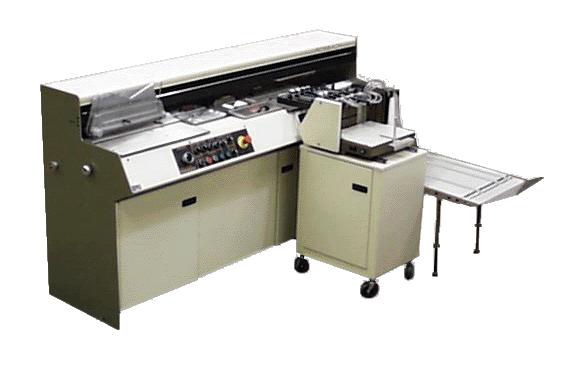

885 Cover Feeder
Fits all new and field 880's!
The 885 Automatic Vacuum-feed Cover Feeder allows for one operator to efficiently achieve maximum production. You can purchase a new 880 with 885 Cover Feeder or add the 885 later when your work grows.
885 Cover Feeder Specifications
Maximum cover size: 20-1/2" x 12-1/2" (52.1cm x 31.8cm)
Minimum cover size: 8-1/2" x 4" (21.6cm x 10.2cm)
Cover pile height: 4-3/4" (12.1cm)
Machine length, front to back: 27" (68.6cm)
Machine width, side to side: 23" (58.4cm)
Machine height: 41" (104.1cm)
Net weight: 160 lbs. (72kg)
Shipping weight: 275 lbs. (125kg)
Export shipping weight: 305 lbs. (138kg)
Standard electrics: 115V/60HZ/1PH 10 amp*
*Contact ROSBACK
for alternate electrical requirements.
885 Cover Feeder Unique Features
-- Proudly made in U.S.A.
-- Accurately feeds all stocks including covers with varnish or cut-outs
-- Vacuum feed assures positive pick-up with no marking
-- Continuous top loading
-- Easy operation - no training required
-- Fast set-up and changeover
-- Fits all Rosback 880 PerfectBinders
-- Quickly retrofits field machines
885 Cover Feeder Standard Features
-- Vacuum pump
-- Caster mounted
-- Spare Parts and Tool Kit
For more information send correspondence to:
Rosback Company
c/o Ron Bowman
rosbacksales@qtm.net
PO Box 899, Benton Harbor, Michigan 49023
Voice-616.983.2582, Fax-616.983.2516
