As the world's leading manufacturer of perforators for over 100
years, ROSBACK continues to set the standards by which
quality perforating equipment is measured. This tradition stems from our forefather's
mandate which requires precision, reliability, and low maintenance be built into all our
products in the interest of profit-oriented managers who rely on these characteristics to
improve their bottom line...their profits.

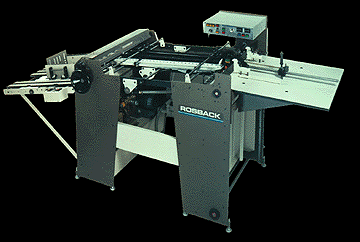

240 Vacuum Pile-Feed Perforator
The ROSBACK 240 Vacuum Pile-Feed Perforator
is ideal for high quality standard perfs and scores as well as specialty heads for compact
disc (CD) Inlay cards, micro-perf, and semi-slitting.
The ROSBACK 240 Vacuum Pile-Feed Perforator is compatible with
most right angle folders for score/fold applications. ROSBACK
recently introduced the 248 Cross Perforator to complete right
angle jobs perfectly and even more profitably!
240 Series Perforator Specifications
Maximum sheet size: 30" x 30" (76.2cm x 76.2cm)
Minimum sheet size: 7-1/2" x 7-1/2" (19.1cm x 19.1cm)
Minimum space between standard line of scoring/creasing: 1/4"
(.63cm)
Minimum space between standard line of perforation: 3/4" (1.9cm)
(1/2" spacing available)
Standard edge margin: 3/4" (1.9cm) (3/8" narrow margin
available)
D.C. drive speed: Up to 25,000 FPH
Length: 9' (2.7m)
Width: 4' (1.2m)
Height: 5' (1.5m)
Net weight: 1056 lbs. (479kg)
Shipping weight: 1535 lbs. (696kg)
Export shipping weight: 1682 lbs. (763kg)
Standard electrics: 230V/60Hz-3Ph* (30 amp service recommended)
*Contact ROSBACK
for alternate electrical requirements.
240 Series Perforator Optional Accessories:
Perforating heads with burr rollers
Narrow margin 3/8" perforating heads
Special 1/2" slot perforating heads (between lines of perforation)
Knife-cut snapout cutters
Pressure-sensitive slitting attachment
Slitting heads
Micro-perf heads
Extra wide scoring heads
Special engineered heads
Gutter-cut heads
"CD" heads
"CE" style guarding
Model 242 Strike Perforator
Vacuum Pile-Feed strike/skip perforator. Accurately start and stop the perforating
action for applications where it's necessary to perforate a part of the stock and then
skip before perforating again.
The 242 is the ideal choice when magazine tear-out cards need to be perforated, or for
other jobs requiring the ability to skip perforate. Multiple skip capability
facilitates running jobs two-up. Changing from continuous to skip perforating is
easy.
Model 243 Tandem Shaft Perforator
Vacuum Pile-Feed dual (2) shaft unit for score-on-score cover stocks, and virtually
unlimited intricate patterns of perf/score/slit including CD-ROMs. Shafts in tandem
provide numerous capabilities.
For more information send correspondence to:
