A saddle stitcher that economically handles both large and small volumes. Especially designed to produce booklets, pamphlets, price lists, advertising brochures, etc.

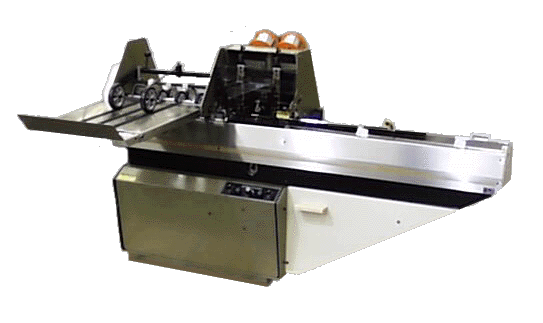

201B Stitcher
Handles books or pamphlets from 2 sheets up to
3/16" thick (approximately 60 pages) . . . 3-1/2" x 5" to 12" x
15" in size.
201B Stitcher Specifications
Maximum booklet size: 12" x 15" (305mm x 381mm)
Minimum booklet size: 3-1/2" x 5" (89mm x 127mm)
Height: 49" (1.24m)
Length: 84" (2.13m)
Width: 55" (1.40m)
Net weight: 700-lbs. (318kg)
Shipping weight: 900-lbs. (408kg)
Export shipping weight: 1000-lbs. (454kg)
Standard electrics: 115V/220/50HZ/60/1PH
Contact ROSBACK
for nonstandard electric features.
Standard Features
2 Quick clamping, stitching heads
2 head alignment gauges
Book sensor
Stagger stitch feature
Feed table
2 feeding stations
Variable speed drive
Movable foot switch
Advanced tape delivery
Tool kit
Optional Features
Additional stitcher heads - machine comes equipped with 2 heads but can be used with up to
4 stitching heads
Hohner Stitching Heads
213 Saddle Extension (Allows up to 6 assembly stations)
"CE" style guarding
Need Automation?
ROSBACK has other SaddleBinding Stitcher system models
Model 203 Bindery System or RELIANT 318 SaddleBinder are complete
units with the latest ROSBACK designs.
ROSBACK SaddleBinding systems include a 6-pocket Auto-Feeder
and the popular 3-Knife single book Auto-Trimmer. ROSBACK
recently introduced the 318 LYNX SaddleBinder that
includes a space-reducing 4-pocket Auto-Feeder and the popular 3-knife single book
Auto-Trimmer.
