ProFeeder 953 - Continuous pile capacity, vacuum separation, mechanical grippers with rotary transfer. Feeds single sheets, signatures and booklets.

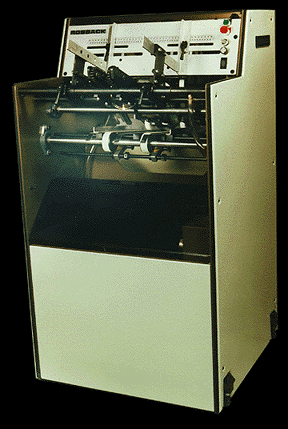

953 ProFeeder
The 953 ProFeeder, is a self powered, single pocket feeder, that will feed signatures...both stitched and unstitched, single sheets and glued booklets, into other equipment, at speeds up to 6500 cycles per hour. The ROSBACK ProFeeder is mounted on casters. The units can be easily rolled to work stations throughout your plant.
953 ProFeeder Specifications
Minimum Sheet/Signature Size: 3-1/2" x 5-1/2" (89mm x 140mm)
Minimum Sheet/Signature Size: 12-1/2" x 18-1/2" (318 x 470mm)
Maximum Hopper Capacity: 8" (203mm)
Material Thickness: 16-lb. bond single sheets to 64-pp signatures
Exit Height from Delivery: 36" (91.5cm)
Floor Space: 31" (79cm) wide x 34" (86cm) long x 57" (145cm)
high
Net Weight: 685 lbs. (310kg)
Shipping Weight: 860 lbs. (390kg)
Export Shipping Weight: 995 lbs. (451kg)
Power: 1/3 H.P. - D.C. Drive motor - 3.5 AMP
1/4 H.P. - A.C. Vacuum pump - 5 AMP (10 AMP service required)
Standard electrics (Drive motor): 115V/60HZ/1PH*
Standard electrics (Vacuum pump): 115V/60HZ/1PH*
*Contact ROSBACK
for optional electrics availability.
For more information send correspondence to:
Rosback Company
c/o Ron Bowman
rosbacksales@qtm.net
PO Box 899, Benton Harbor, Michigan 49023
Voice-616.983.2582, Fax-616.983.2516
